Vending Solutions

Vending system is a unique and necessary part of a prepayment metering solution that provides energy trading platform. different utilities around the world face different types of difficulties and challenges. like, collecting the money from the end user, high tamper, dealing with outstanding accounts or unpaid bills and avoid late payments, extending payment channels, protecting the investment of the utilities by providing an ultimate revenue collection system.

System Overview

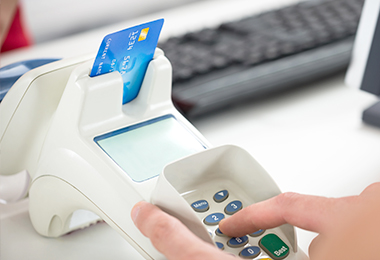

Hexing vending system is a mature financial software platform assisting utilities to sell the energy via a token, manage prepayment meters and handle vending channels. our system has different interfaces based on structure, 3rd party systems like banking, e-Valet applications, billing or even MDM if any smart prepaid metering system is running over there. This system can integrate with existing (AMI), perform data analysis, failures, events, even exporting and importing data, setup a schedule reporting, readout data by creating a schedule or on demand reading, load profile, configuration for meters, and controlling those meters.

Key benefits

• Improve the cash management by providing accurate balance sheet for the utilities.
• Easy deploying of multi-tariff, support remote switching between STS and CTS and Time of use tariff configuration.
• Interoperability and scalability STS standard open protocol.
• Token management (clearing, emergency, tamper removal, reversal, etc.).
• Managing multiple vending Channels, like POS, Retails… etc.

---

Background

In the traditional billing system process, files were used to maintain the database which was done manually. There are many challenges facing the utilities regarding the billing process. like, data manipulation, managing customer information, costly billing process, several system installations (integration).  the aim of developing a billing system is to computerize the work performed in electricity.

System Overview

Dealing and managing utility customer information can be complicated and time-consuming, utilities need easy access to complete data to respond to customer questions and issues. Hexing billing system provides customer information management (CIS). Also, this system support grid management function, archive management which record all related information of customers, and of course Generating bills according to the customer consumption; maintain historical information regarding services, accounts, and customers; track and verify consumption to facilitate billing process; and more from one comprehensive application.

Key benefits

• Process all metered and non-metered billing functions quickly, easily and accurately.
• Support more than one million residential and industrial customers.
• Evaluating the customer’s requirement and finalizing the contract.
• Also handling contract management such as cancellation, termination, and customization.
• Evaluating and finalizing results in order to issuing the bill.
• Integration through the CIM standard with other 3^rd party system such as AMI…. etc.

Background

Being not costly distribution transformers, utility companies don’t care that big number of outage potentials. Losing each distribution transformer normally at the pick time will reduce total revenue as well as customer satisfaction while cost-effective monitoring of such transformers provides live tracking to prevent any transformer failure.

---

Gallery

---

Solution Overview

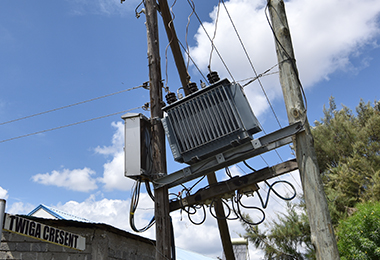

Hexing’ Transformer Monitoring System (TMS) is designed based on state-of-the-art multi-functional gateway which accurately measures electrical parameters of transformer’ LV side, manages belonging smart PLC or RF residential meters (as a DCU) and monitor transformer’ oil or even control relevant feeder/transformer ( up to 800A).

This advanced TMS unit has 2 types for the cases that utility wants to monitor the transformer and manage smart meters or monitor transformer, manage smart meters with extra ability of remote switching. Basic unit measures secondary side of transformer via portable Rogowski CTs and advanced type does same measurement but via normal split-core CTs installed in the box. Collected load, network and oil data will be securely transferred to the utility over GPRS/3G/4G or even Ethernet cable.

Except asset management that is the main concern of Hexing TMS, there are other applications like peak shaving, loss monitoring (a key tool of ATC&C system) and Feeder monitoring, all to optimize smart grid structure.

---

Key Benefits

• Enhancing network reliability
• Outage reduction
• Asset optimization
• Demand management
• Installation and commissioning’ costs reduction through unique combined TMS unit (DCU+TMU+CB)
• Facilitation of distribution network’ maneuver
• Load balancing Enhancement
• Street lighting management

Background

Utility companies around the world suffering by different percentage of loss that can be optimized as a network development budget. Unexpected tamper rate, unmanaged electricity bill collection and variety of technical loss will make utilities blind to their revenue and electricity network performance.

---

Gallery

---

Solution Overview

Hexing develops a mature loss management platform ATC&C (Aggregate Technical, Commercial & Collection) to monitor, locate and analysis a combination of different technical and non-technical losses. It represents overall and individual losses based on 4 different resources (feeder, transformer area, voltage level & zone). In case there is no access to some metering nodes over lack of communication channel in meter, an advanced HHU can collect data and immediately transfer to HES over cellular 3G/4G network.

ATC&C system is representing revenue protection concept over 3 mature individual platforms:

• Technical loss based on fixed elements of network equipment and following calculation methods like lines and transformers
• Commercial loss based on almost all kind of non-technical loss like tampers, faulty meters, incorrect readout & etc.
• Collection loss based on overdue or any missing of electricity bill.

This platform developed for several applications that are common resources of loss in all distribution networks like distribution lines, distribution transformers, boundary areas, current transformers and end-user AMR/AMI meters.

---

Key Benefits

• Effectively enhancing utilities investment capabilities
• Accurate demand planning
• Tamper reduction
• Outage risks reduction
• Efficient asset management

---

Background

Utility companies have different customers that categorized based on required demand. End user customers mostly divided into two groups, Residential and Industrial customers that residential customers are huge in number but small in revenue in comparison to commercial and industrial (C&I) customer which are few in number but they are big in revenue. Utilities always face many challenges to monitor those big customers for example, Illegal tamper causes high commercial losses, it is difficult to make a field visit and inspection, Delayed bill payment brings high bad debt, and High asset fail risk in case of over loading (transformer).

---

Overview

Hexing smart C&I metering solution integrates a broad portfolio of devices, IT hardware and software to block revenue leakage along the power distribution chain. The architecture is comprised of three layers:

Layer 1 – Low Voltage Side: Hexing designed smart meter and enclosure with complete anti-tamper facilities. And also developed a prepayment solution for small C&I customer with external breaker to disconnect power supply whenever the credit is run off.

Layer 2- Median Voltage Side: In the MV side, Hexing provides integrated metering solution with combined CT/PT devices. MV metering suit installed at the primary side of transformer makes it difficult for end user to touch and perform any illegal manipulation.

Layer 3- Master Station: Hexing C&I solution includes a multi-vendor HES, it supports interaction with MDM, CIS and other legacy system.

---

Gallery

---

Key benefits

• Auto disconnection to protect asset in case of overload
• Remind or Pressure end user to pay the energy bill.
• MV (Medium Voltage) metering and monitoring prevents power theft.
• Support Prepayment to eliminate bad debt.
• Extends DSM (demand side management) to large power users.

Background

Energy consumption trend is increasing day by day, the challenging factor that forces utility companies deal with:

• Costly and inaccurate manual data collection
• Power quality monitoring difficulties
• Demand management
• In-time tamper monitoring
• New configurations

AMI platform is an excellent solution for utilities’ daily challenges when the reliability of billing data collection and security of transferring data become another concerns of utility companies.

---

Gallery

Solution Overview

Hexing’s AMI (Advance Metering Infrastructure) is a mature smart energy management platform interacting with different smart meters and sensors over a range of reliable communication channels (RS485/M-Bus/PLC/GPRS/3G/4G/RF/LoRa/NB-IoT/Ethernet).

Representing AMI solution includes smart meters, reliable communication modules, multi-functional data concentrators and interoperable advanced data collection system (HES). It designed based on cloud structure and supports variety of protocols including but not limited to DLMS COSEM, IDIS, IEC61968/61970 and different communications.

AMI platform actualized then settled in most of utilities’ short or long term road maps to be an appropriate structure for residential and C&I metering , Demand Side Management and smart Home applications all resulting in workable loss reduction solution.

---

Key Benefits

• Future-proof modular design
• Cloud structure
• Integration with different 3th party systems over CIM standard
• Easy integration of different protocols and communications
• Demand optimization
• Loss reduction
