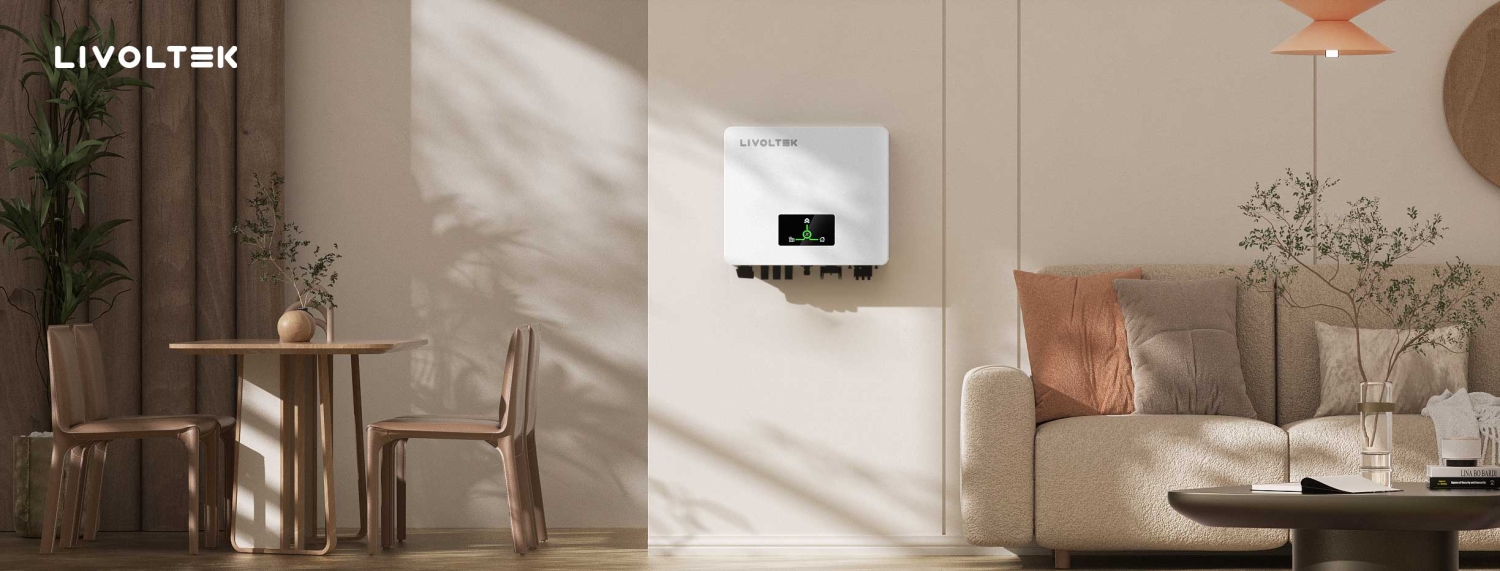

Grid Tied PV Inverter Single Phase-7kW~10 kW

Posted on by hexing_admin

7-10 kW PV Inverter

PV Inverter | Single Phase | 3 MPPT

On-grid PV Inverter

GT1-7.0 / 8.0 / 9.0 / 10.0K-T1

.

The LIVOLTEK GT1-7.0/8.0/9.0/10.0K-T1 PV inverter is developed for customers using high-power single-phase household models. This inverter is not only compatible with PV systems required for complex roofs, such as private homes or villas, but is also powerful in small commercial and industrial scenarios. With an input current of 20A, it is suitable for high-efficiency large modules to enhance power generation in all aspects. The optional built-in SPD II module can effectively reduce external installation labor and wire costs. Local Bluetooth APP and remote dual monitoring provide users with the best inverter performance and maximum convenience and comfort.

.

.

Product Highlights

  • Built-in triple MPPT
  • Max efficiency of 98.4%
  • Compatible with external LCD screen
  • Optional internal integrated AFCI module

.

.

How It Works

High Performance

Wide working voltage

3 MPP trackers, 20A max string current

Flexible PV string configurations, DC/AC ratio up to 1.5

High Reliability

IP65 & Natural cooling

Multiple protection and detection

Compact design, plug, and play installation

Intelligent Maintenance

Easy & Quick setup via Bluetooth

Local and online monitoring via App or Web

Remote upgrading & debugging, easy operation and maintenance

.

.

Product Core Data Comparison

.

PV Inverter GT1 Series 7.0kW

ModelGT1-7KT1
Max. DC Input Power [Wp]10500
Start-up DC Input Voltage [V]90
Nominal Output Power [W]7700
Rated AC Grid Voltage[V]220/230/240,L/N/PE
Protection DegreeIP65

PV Inverter GT1 Series 8.0kW

Model GT1-8KT1
Max. DC Input Power [Wp]12000
Start-up DC Input Voltage [V]90
Nominal Output Power [W]8800
Rated AC Grid Voltage[V]220/230/240,L/N/PE
Protection DegreeIP65

PV Inverter GT1 Series 9.0kW

Model GT1-9KT1
Max. DC Input Power [Wp]13500
Start-up DC Input Voltage [V]90
Nominal Output Power [W]9900
Rated AC Grid Voltage[V]220/230/240,L/N/PE
Protection DegreeIP65

PV Inverter GT1 Series 10.0kW

Model GT1-10KT1
Max. DC Input Power [Wp]15000
Start-up DC Input Voltage [V]90
Nominal Output Power [W]11000
Rated AC Grid Voltage[V]220/230/240,L/N/PE
Protection DegreeIP65

Grid Tied PV Inverter Single Phase-3.6kW~6.0 kW

Posted on by hexing_admin

3.6-6.0 kW PV Inverter

PV Inverter | Single Phase | 2 MPPT

On-grid PV Solar Inverter

GT1-3.6 / 4.0 / 4.6 / 5.0 / 6.0K-D1

.

The LIVOLTEK GT1-3.6/4.0/4.6/5.0/6.0K-D1 inverter is specially designed for private residential PV systems and its compact design ensures minimal space requirements. Small in size and light in weight, it can be easily installed by one person. The inverter can optionally integrate the AFCI DC fault arc protection function inside, which can actively reduce the risk of fire with a high safety factor. In addition, it also supports a local Bluetooth APP and remote dual monitoring, which is convenient and stable.

.

.

Product Highlights

  • Built-in Dual MPPT
  • Remote maintenance
  • External LCD display box
  • Plug-and-play installation saves time
  • Zero-feed in (optional)

.

.

How it Works

.

Superior EfficiencyHigh ReliabilityIntelligent O&M
Max efficiency 94%Natural coolingSupport export power control
String current up to 14AOptional SPD II protectionSmart APP to monitor and optimize
Built-in dual MPPTIP65 C5 anti-corrosion protectionSupport cloud upgrade & remote maintenance

.

.

Product Core Data Comparison

PV Inverter GT1 Series 3.6kW

ModelGT1-3K6D1
Max. DC Input Power [Wp]5400
Start-up DC Input Voltage [V]90
Max. DC Input Current [A]14/14
Nominal Output Power [W] 3960
Max. Efficiency98.4%

PV Inverter GT1 Series 4.0kW

ModelGT1-4KD1
Max. DC Input Power [Wp]6000
Start-up DC Input Voltage [V]90
Max. DC Input Current [A]14/14
Nominal Output Power [W]4400
Max. Efficiency98.4%

PV Inverter GT1 Series 4.6kW

ModelGT1-4K6D1
Max. DC Input Power [Wp]6900
Start-up DC Input Voltage [V]90
Max. DC Input Current [A]14/14
Nominal Output Power [W] 4600
Max. Efficiency98.4%

PV Inverter GT1 Series 5.0kW

ModelGT1-5KD1
Max. DC Input Power [Wp]7500
Start-up DC Input Voltage [V]90
Max. DC Input Current [A]14/14
Nominal Output Power [W]5500
Max. Efficiency98.4%

PV Inverter GT1 Series 6.0kW

ModelGT1-6KD1
Max. DC Input Power [Wp]9000
Start-up DC Input Voltage [V]90
Max. DC Input Current [A]14/14
Nominal Output Power [W]6600
Max. Efficiency98.4%

Grid Tied PV Inverter Single Phase-2.5kW~6kW

Posted on by hexing_admin

Grid Tied Inverter-2.5kW~6kW

PV Inverter | Single Phase | 2 MPPT
GT1-2K5/3K/3K3/3K6/4K/5K/6K D2

.

Pv Inverter – Single Phase Grid-Tied PV Inverter LIVOLTEK GT1 2.5~6K-D2 grid-tied inverter: Designed for modern residential needs, this sleek and compact inverter with dual MPPTs is ideal for complex design environments. With a maximum input current per string of up to 16A, it is compatible with large 182+ PV modules. The integrated AFCI (Arc Fault Circuit Interrupter) ensures DC arc fault protection, prioritizing safety. Additionally, enjoy smart remote supervision and maintenance through interactive Wi-Fi monitoring via our App or web platform, making your solar energy pursuit both effective and efficient.

.

.

Product Highlights

  • Small size and light weight
  • Integrated AFCI (optional)
  • Wi-Fi/4G/Ethernet Com
  • Lower startup & Daul MPPT

.

.

Product Core Data Comparison

.

PV Inverter GT1 Series 2.5kW

ModelGT1-3KD2
Max. DC Input Power [Wp]3750
Start-up DC Input Voltage [V]90
Max. DC Input Current [A]16/16
Protection DegreeIP65
Weight [KG]12

PV Inverter GT1 Series 3kW

ModelGT1-2K5D2
Max. DC Input Power [Wp]4500
Start-up DC Input Voltage [V]90
Max. DC Input Current [A]16/16
Protection DegreeIP65
Weight [KG]12

PV Inverter GT1 Series 3.3kW

ModelGT1-3K3D2
Max. DC Input Power [Wp]4950
Start-up DC Input Voltage [V]90
Max. DC Input Current [A]16/16
Protection DegreeIP65
Weight [KG]12

PV Inverter GT1 Series 3.6kW

ModelGT1-3K6d2
Max. DC Input Power [Wp]5400
Start-up DC Input Voltage [V]90
Max. DC Input Current [A]16/16
Protection DegreeIP65
Weight [KG]12

PV Inverter GT1 Series 4kW

ModelGT1-4kd2
Max. DC Input Power [Wp]6000
Start-up DC Input Voltage [V]90
Max. DC Input Current [A]16/16
Protection DegreeIP65
Weight [KG]12

PV Inverter GT1 Series 5kW

ModelGT1-5kd2
Max. DC Input Power [Wp]7500
Start-up DC Input Voltage [V]90
Max. DC Input Current [A]16/16
Protection DegreeIP65
Weight [KG]12

PV Inverter GT1 Series 6kW

ModelGT1-6kd2
Max. DC Input Power [Wp]9000
Start-up DC Input Voltage [V]90
Max. DC Input Current [A]16/16
Protection DegreeIP65
Weight [KG]12

Grid Tied PV Inverter Single Phase-1.6kW~3.3 kW

Posted on by hexing_admin

1.6-3.3 kW PV Inverter

PV Inverter | Single Phase | 1 MPPT
On-grid PV Inverter
GT1-1.6 / 2.2 / 3.0 / 3.3K-S1

.

The LIVOLTEK GT1-1.6/2.2/3.0/3.3K-S1 is an economical mini inverter developed and designed for home use. GT1 series has advanced topology and precise MPPT algorithm, with the highest conversion efficiency up to 97.8%. It is suitable for different grid voltage ranges in many parts of the world, mainly covering 220V and 230V. Equipped with Wi-Fi and Bluetooth dual wireless monitoring function, it is convenient and easy to operate.

.

.

Product Core Data Comparison

.

PV Inverter GT1 Series 1.6kW

ModelGT1-1K6S1
Max. DC Input Power [Wp]2400
Start-up DC Input Voltage [V]70
Max. DC Input Current [A]14
Protection DegreeIP65
Weight [KG]6.5

PV Inverter GT1 Series 2.2kW

ModelGT1-2K2S1
Max. DC Input Power [Wp]3300
Start-up DC Input Voltage [V]70
Max. DC Input Current [A]14
Protection DegreeIP65
Weight [KG]6.5

PV Inverter GT1 Series 3kW

ModelGT1-3KS1
Max. DC Input Power [Wp]4500
Start-up DC Input Voltage [V]70
Max. DC Input Current [A]14
Protection DegreeIP65
Weight [KG]6.5

PV Inverter GT1 Series 3.3kW

ModelGT1-3K3S1
Max. DC Input Power [Wp]4950
Start-up DC Input Voltage [V]70
Max. DC Input Current [A]14
Protection DegreeIP65
Weight [KG]6.5

.

.

How it Works

.

Activate Livoltek Inverter

During registration of the system in the Livoltek APP, the installer needs to activate the Livoltek APP and then Livoltek will start the automatic monitoring of the inverter.

Smart Monitoring System

During the operation of the inverter, the Livoltek monitoring
system will automatically monitor the bound equipment around
the clock. Users can check the power generation status of the
inverter anytime, anywhere. Using Livoltek’s latest Internet technology and intelligent management, you have no worries
 about daily operation and maintenance, which ensures the
best interests of every customer.

.

Automatic Error Reporting

In the event of a sudden inverter failure, the Livoltek monitoring system will automatically diagnoses, analyzes, and reports the problem immediately, and also notifies the installer and PV system operator.
This not only minimizes the downtime of the equipment but also reduces the costly expenses of the user. Meanwhile, regular fault
reports also provide the installer with valuable information
about the entire system quickly.

Warranty Service

If the equipment needs to be repaired, Livoltek will repair the machine promptly after the fault diagnosis, the installer or operator. As an installer, you can also contact the PV system operator yourself to repair or replace the inverter.

.

.

Product Highlights

.

  • 150% DC/AC ratio
  • Maximum efficiency of 97.8%
  • Smart APP to monitor & optimize
  • Compatible with external LCD screen
  • 110% AC output for efficient power generation
  • Optional AFCI protection
